HDP Industrial Series Antenna

te-hdp-industrial-series-antenna

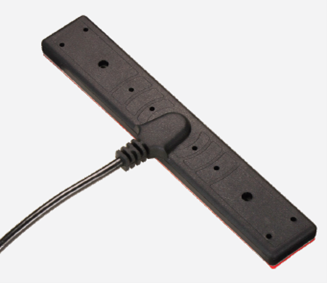

Remote Adhesive-Mount Cellular Antenna

The HDP Industrial series offers rugged remote-mount dipole antennas having excellent performance for all common 5G and LTE bands, cellular IoT (LTE-M and NB-IoT) applications, GNSS/GPS and Wi-Fi/ISM.

HDP Industrial series antennas are durable, low profile, IP67 rated, and UV protected. They mount permanently to non-conductive surfaces using the integrated adhesive patch and connect using RG-174/U low-loss cable terminated in an SMA plug (male pin).

Features:

  • High efficiency across all bands
  • Low profile
    • 104.0 mm x 17.0 mm x 4.2 mm
  • Durable UL 2556 SECTION 4.2.8.5 UV protected radome
  • IP67 rated for heavy-duty outdoor use
  • Low-loss RG-174/U coaxial cable for improved performance at higher frequencies
  • SMA plug (male pin) with multiple cable length options

Application:

  • Worldwide 5G, LTE, UMTS and GSM
  • Cellular IoT: LTE-M (Cat-M1) and NB-IoT
  • Frequency bands
    • T-Mobile: band 71
    • AT&T: bands 12, 14, 17
    • Verizon: band 13
    • Europe: bands 8, 20
    • Latin America: bands 5, 28
    • Asia Pacific: bands 5, 8, 20, 28
  • Wi-Fi/ISM
  • Global Navigation (GNSS)
  • Internet of Things (IoT) devices

To learn more about TE’s VDP Industrial Series Antenna, please click to read: HDP Industrial Series Antenna

For more Interconnect recommendations and customizations, please feel free to contact your sales team at Heilind.
