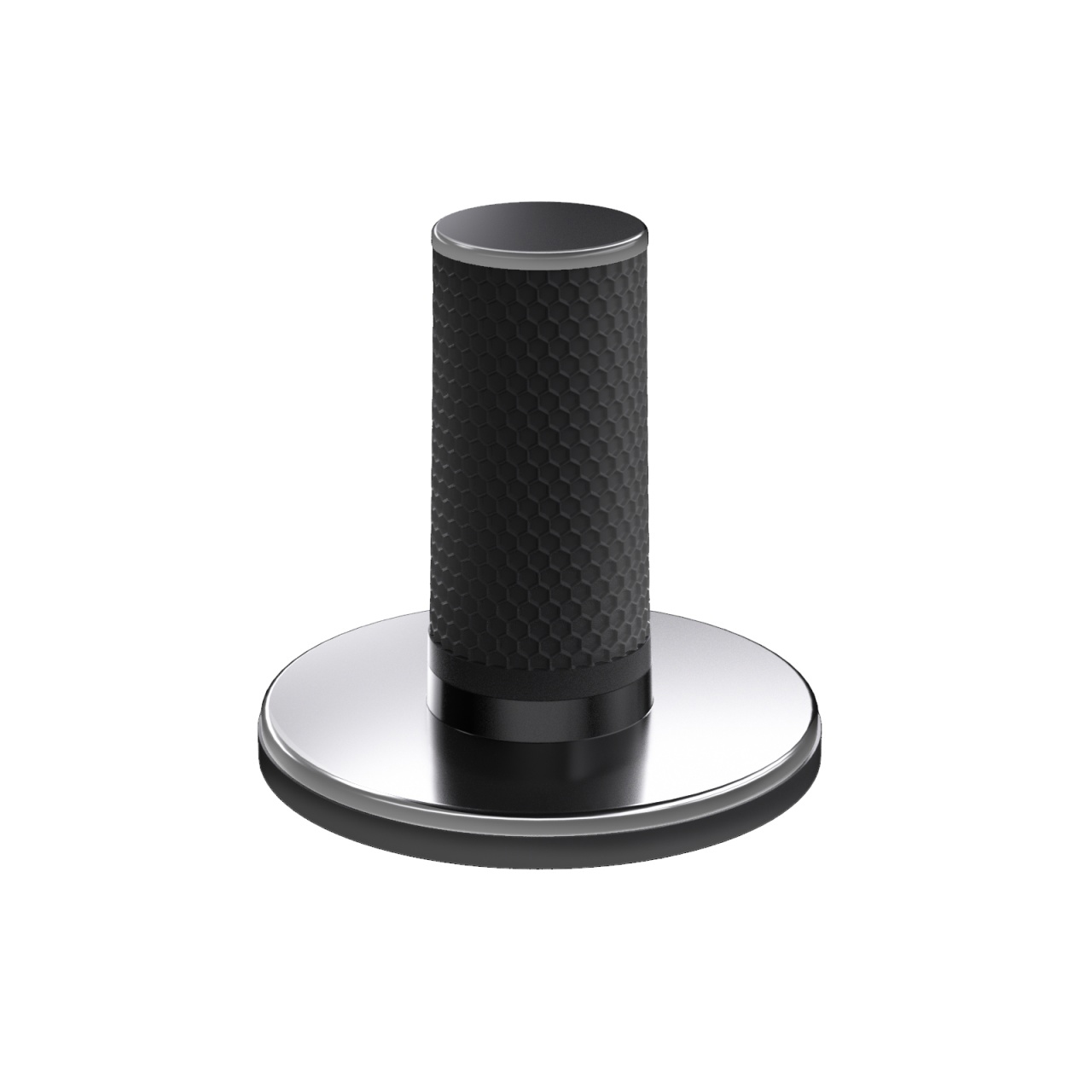

Aaronia OmniLOG PRO Omnidirectional Antennas are available in four models for radial isotropic measurements or transmissions from 150 MHz up to 18 GHz.
Saelig Company, Inc. announces has introduced Aaronia OmniLOG PRO Omnidirectional Antennas. This series of compact, ultra-wideband omnidirectional antennas is suited for radial isotropic use from 150 MHz up to 18 GHz, encompassing most RF sources such as LTE, GSM, UMTS, WLAN, etc. These cost-effective antennas are specified for 1W cw receive and 100W cw high-power transmit, making them ideal for broad-range spectrum analyzer measurements, interference search, frequency monitoring, and tasks such as equipment evaluation or countermeasure challenges.
The compact 4.3” x 1.4” OmniLOG PRO range consists of 4 models in SMA or N versions (PRO 1030: 150MHz – 3GHz, PRO 1060: 150MHz – 6GHz, PRO 10100:150MHz – 10GHz, PRO 10200: (150MHz – 18GHz) to cover RF sources from FM to K-band, radio and TV signals, DECT, Bluetooth and WLAN, product EMI, etc.)
Each OmniLOG PRO comes with a full 2 year warranty and is equipped with an IP65 housing suitable for outdoor use. A magnetic antenna base on the SMA version allows for temporary installation, for example on a car roof. Comprehensive calibration data in 50 MHz steps can be downloaded to allow highly accurate measurements with any spectrum analyzer.
Application examples:
• Omnidirectional measurement applications
• Spectrum monitoring, including non-public frequency bands
• Examining interference-free mobile communications
• Interference detection
Made in Germany by Aaronia AG, Europe’s award-winning, innovative manufacturer of RF site survey tools, handheld spectrum analyzers, antennas and EMC test probes, the OmniLOG PRO range is available now from Saelig Company, Inc., technical distributor for Aaronia USA.
