The latest additions to the PicoScope 3000 series USB-powered PC oscilloscopes add MSO capabilities to these recently-introduced 350/500 MHz bandwidth, 5GSa/s sampling, 10-bit resolution PC-based scopes that combine cutting-edge technology with user-friendly operation.

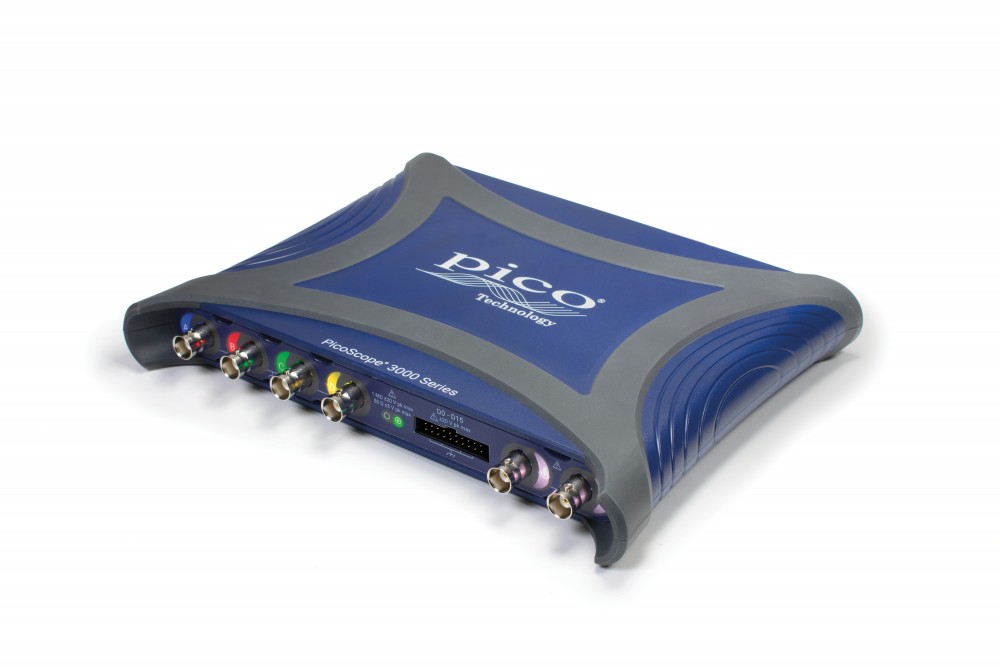

Saelig Company, Inc. announces the Pico Technology PS3417E MSO and PS3418E MSO, the world’s first USB-powered 5GSa/s PC-based oscilloscopes with MSO mixed-signal capabilities. An expansion of the PicoScope 3000 series, the two 350 MHz and 500 MHz bandwidth MSO models have 10-bit resolution (14-bit precision with Enhanced Resolution) and now also feature 16 digital logic analyzer channels for comprehensive digital debug tasks.
The PicoScope 3000E oscilloscopes are small and portable and provide high-performance specifications that are supported by the advanced PicoScope 7 Test and Measurement software. The PicoScope 3000E MSO Series enables the rapid, cost-effective debug and performance validation of complex analog, digital, and power electronics. The 2GSa ultra-deep capture memory enables capturing long-duration signals at maximum sampling rate. This is complemented with the PicoScope DeepMeasure™ tool that delivers automatic measurements of waveform parameters on up to a million waveform cycles with each triggered acquisition. USB 3.0 Type-C® connection and power ensures high-speed data transfer and compatibility with the latest generation of PCs, simplifying connectivity and setup. An adaptor for earlier USB port types is provided, however.
Included in the design is a 200 MSa/s 14-bit AWG / Function Generator, which offers real-world waveform generation capabilities for a wide range of applications, eliminating the need for additional external equipment. Software control is via the PicoScope 7 User Interface for Windows, Mac and Linux, which even comes with free updates. 38 Serial Decoders are included at no charge to facilitate the analysis of serial bus communications, simplifying debugging and troubleshooting processes. Segmented Memory, Persistence, and Fast waveform updating in PicoScope 7 enhance waveform visualization and analysis capabilities, enabling users to extract valuable insights efficiently. Memory segmentation can capture thousands of waveforms in quick succession and view them in the waveform buffer navigator, filtering them using criteria such as mask limit testing or measurement limits to drill down to significant waveforms. Also included are comprehensive analysis tools such as FFT spectrum view, Advanced Math, Measurements, Masks and Digital Triggering for in-depth waveform characterization and interpretation. The digital trigger available on these MSO models allows reliable scope triggering when any or all of the 16 digital inputs match a user-defined pattern using a hexadecimal or binary value. The PicoScope software also automatically scales to take full advantage of the improved resolution of larger display sizes, including 4K ultra-high-definition models. Host computer displays are typically larger and of higher resolution than the screens of traditional benchtop oscilloscopes. This allows space for the simultaneous display of time- and frequency-domain waveforms, decoded serial bus tables, measurement results with statistics and more.
The PicoScope 3000E MSO Series of PC oscilloscopes, which are small (8.7” x 7.2” x 1.2”), light (1.5lb), and portable, provide high-performance specifications for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or in the field. They offer a valuable investigative tool for applications that include embedded systems design, research, test, education, service, and repair. The scopes also come with a 5-year warranty and free technical support.
Made by Pico Technology, Europe’s award-winning test and measurement manufacturer, the PicoScope 3000E MSO Series are available now from Saelig Company, Inc. their USA technical distributor. For detailed specifications, free technical assistance, or additional information, please contact Saelig 888-7SAELIG, via email: info@saelig.com, or visit https://www.saelig.com/category/picoscope-3000e.htm.
