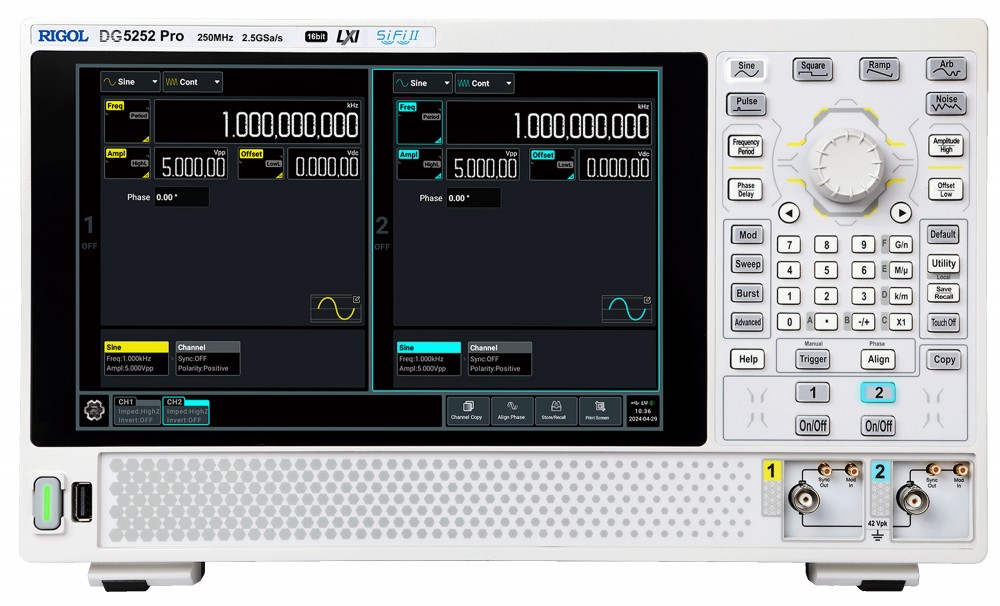

Rigol DG5000 Pro models offer faster sampling and a larger screen size.
Saelig Company, Inc. has introduced the Rigol DG5000 Pro Series Signal Generators with up to 2.5GSa/s sampling and 64Mpts/ch memory depth (128Mpts/ch optional). The three models in the DG5000 Pro series are DG5252 Pro (250MHz), DG5352 Pro (350MHz), and DG5502 Pro (500MHz). The isolated dual-channel DG5000 Pro Series are all-in-one generators that integrate Function Generation, Arbitrary Waveform Generation, Noise Generation, Pulse Generation, Harmonics Generation, and Analog/Digital Modulation. They can be powered from an attached battery pack to provide ground isolation and facilitating field test situations. All the 16-bit vertical resolution Pro models are priced significantly lower than the equivalent 14-bit Rigol DG5000 predecessors and offer improved specifications such as faster sampling and a larger 10.1” HD touch screen, which allows configuring dual-channel waveforms on a single screen.
Features of the series include:
- Dual-channel isolated outputs
- AM/FM/PM/ASK/FSK/PSK/SUM modulation
- Up to 500MHz signal generation
- Phase alignment
- Adjustable time delay
- 2-Channel Synchronization
- Pulse width & time-delay adjustable
- Pulse & Square waves >120 MHz
- Square: 170 MHz max. frequency, 0.8 ns min. rise time
- Pulse: 120 MHz max. frequency, 4.2 ns min. pulse width
- Sequence mode (up to 128 waveforms, including complex sequencing)
- Built-in high-order harmonic generator (max. 20th order)
- Max Arb waveform length 64Mpts/ch (128Mpts opt.)
- Software Options: Sequence, IQ modulation, Multi-pulse, Pattern, Multi-tone
- Standard Web Control function for easy remote cooperation
- Supports external modulation
For design engineers and researchers who need to generate high-frequency waveforms and/or complex sequence generation capabilities, the DG5000 Pro series are ideal instruments for use in embedded circuit design & test, power device verification, automotive control unit simulation, medical & industrial electronics test, etc. The DG5000 Pro Series Signal Generators offer isolated outputs, superior square wave performance, complex sequence generation, integrated arbitrary waveform creation & editing via a user-friendly UI on a large display. They can simulate test situations supporting optoelectronic device research, logic chip development, power semiconductor development and manufacture, etc.
DG5000 Series RF Signal Generators are available now from Saelig Company, Inc., Rigol’s USA technical distributor. For detailed specifications, free technical assistance, or additional information, please contact Saelig 888-7SAELIG, via email: info@saelig.com, or visit www.saelig.com
