Raspberry Pi, globally recognized for its single-board computers, has revolutionized the education and hobbyist sectors and found applications in industrial equipment. Their versatile products are now included in the TME product catalogue, making advanced technological solutions more accessible.
Diverse Product Range
Raspberry Pi’s offerings extend well beyond their renowned single-board computers. Their motherboards feature essential ports like USB, HDMI, and Ethernet, along with SD card slots and GPIO connectors for versatile project integration. The latest Raspberry Pi 5 model introduces a dual-core 64-bit Broadcom BCM2712 processor, up to 8 GB RAM, and enhanced features such as PCIe extension ports, a power switch, and an RTC clock system.
Innovative Models
Raspberry Pi 5: It is equipped with the dual-core, 64-bit Broadcom BCM2712 system, based on the Arm Cortex-A76 architecture and clocked at 2.4 GHz. So it deivers a 2-3x increase in CPU performance relative to Raspberry Pi 4. Moreover, the computer can be fitted with operating memory up to 8 GB RAM and a graphic processor (GPU VideoCore 7) supporting the OpenGL and Vulkan technologies.
Raspberry Pi 400: This model integrates the RPi 4 board into a keyboard housing, reminiscent of classic microcomputers. It comes with a mouse, power supply, pre-installed operating system, and a detailed manual, making it particularly appealing to beginners and younger users.
Raspberry Pi Zero: Known for its compact size and energy efficiency, the Raspberry Pi Zero is ideal for mobile devices and IoT projects. Despite its smaller form factor, it includes essential features like an HDMI connector, USB output, SD card slot, CSI port, and a built-in wireless communication module (Zero W variant).
For projects requiring different formats or more powerful processing capabilities, Raspberry Pi offers Compute Modules. These miniaturized versions provide the core motherboard components without additional ports, allowing for custom configurations via high-density connectors. The CM4 variants offer SMD board-to-board connectors for an even lower profile, enhancing their flexibility for various applications.
RP2040 Microcontroller
Recognizing the need for simpler projects, Raspberry Pi developed the RP2040 microcontroller, based on the Cortex M0+ architecture. This microcontroller, featured in the Raspberry Pi Pico module, includes 264 kB RAM, supports external memory up to 16 MB, and integrates various peripherals such as serial bus controllers, ADC converters, and PWM generators. The Pico module, with its small size and ease of use, is ideal for a wide range of applications.
Comprehensive Accessories

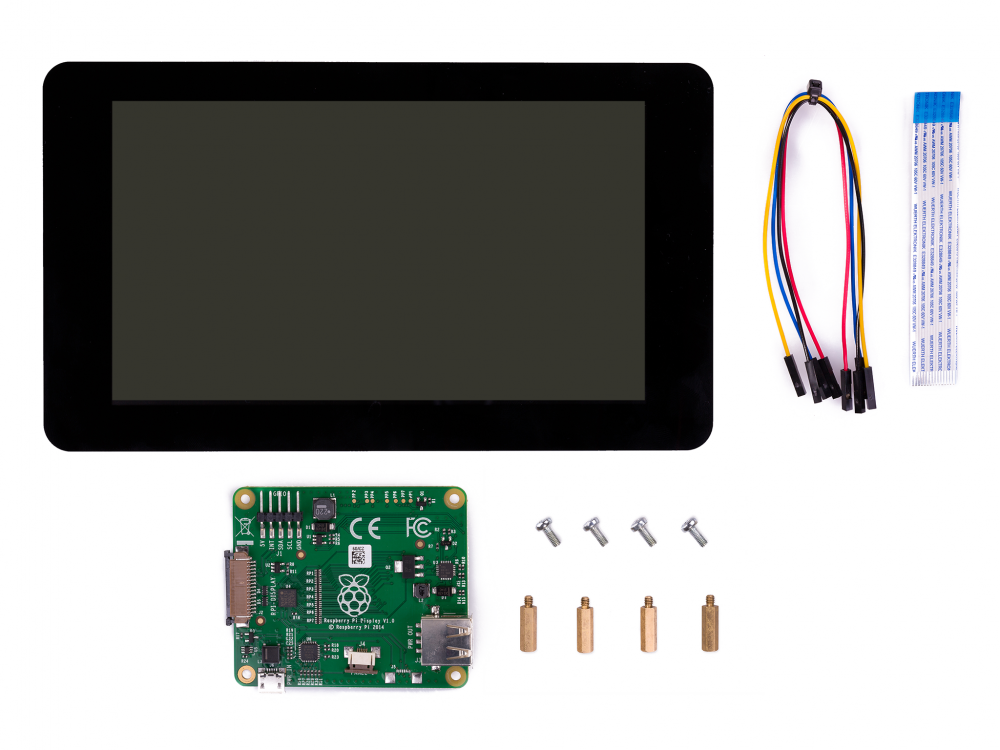

Raspberry Pi also offers a wide range of accessories, including power supply modules and enclosures designed to ensure trouble-free operation and practical usability. Enclosures protect the PCB and components while providing access to all necessary ports and connectors. Raspberry Pi also manufactures peripherals like mice and keyboards, as well as the Raspberry Pi Touch Display, a 7-inch screen with a touch panel that connects via DSI and is powered through GPIO.
The inclusion of Raspberry Pi products in the TME catalogue significantly broadens the availability of cutting-edge technology for educators, hobbyists, and industrial designers. With TME’s extensive inventory, the latest Raspberry Pi solutions are now within easy reach, ready to bring your ideas to life.
The original source of text:tme.com
