Devices Combine Low 1.2V Power Consumption With Fast Clock Speeds of 1600MHz and Transfer Rates of 3200 MT/s in 78-Ball and 96-Ball FBGA Packages

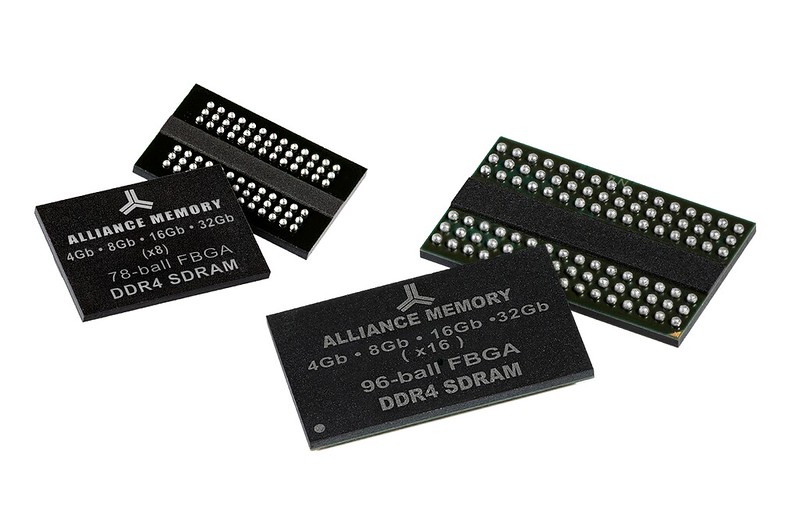

Alliance Memory today announced that it has expanded its portfolio of CMOS DDR4 SDRAMs with six new 8Gb, 16Gb, and 32Gb devices in 78-ball FBGA and 96-ball FBGA packages. Providing the company’s customers with higher-density options for a wide range of applications, the AS4C512M16D4B-62BCN, AS4C1G8D4B-62BCN, AS4C1G16D4A-62BCN, AS4C2G8D4A-62BCN, AS4C2G16D4-62BCN, and AS4C4G8D4-62BCN are built on a new process technology to deliver improved performance — with lower power consumption and higher speeds and transfer rates — at a lower cost.
To increase battery life in portable electronics such as smartphones and tablets, the DDR4 SDRAMs released today feature a low operating voltage of +1.2V (±0.06V). The devices are designed, qualified, and recommended for use in 5G and IoT designs; computing applications; surveillance, gaming, and networking storage systems; smart meters; human-machine interfaces (HMI), digital signal controllers, and PNDs; and more. Built on an 8n-prefetch architecture, the devices offer fast clock speeds of 1600MHz and transfer rates of 3200 MT/s.
The AS4C512M16D4B-62BCN, AS4C1G8D4B-62BCN, AS4C1G16D4A-62BCN, AS4C2G8D4A-62BCN, AS4C2G16D4-62BCN, and AS4C4G8D4-62BCN support sequential and interleave burst types with read or write burst lengths of BC4, BL8, and on the fly. An auto pre-charge function provides a self-timed row pre-charge initiated at the end of the burst sequence. Easy-to-use refresh functions include auto- or self-refresh.
With minimal die shrinks, the DDR4 SDRAMs provide reliable drop-in, pin-for-pin-compatible replacement for numerous similar solutions — eliminating the need for costly redesigns and part requalification. Offered in the commercial (0°C to +95°C) temperature range, the devices are ideal for the industrial, networking, telecommunications, gaming, and consumer markets.
Device Specification Table:
Part # |
Density |
Organization |
Package |
Speed |
Temp. range (°C) |
AS4C512M16D4B-62BCN |
8Gb |
512M x 16 |
96-ball FBGA |
1600MHz |
0 to +95 |
AS4C1G8D4B-62BCN |
8Gb |
1Gb x 8 |
78-ball FBGA |
1600MHz |
0 to +95 |
AS4C1G16D4A-62BCN |
16Gb |
1Gb x 16 |
96-ball FBGA |
1600MHz |
0 to +95 |
AS4C2G8D4A-62BCN |
16Gb |
2Gb x 8 |
78-ball FBGA |
1600MHz |
0 to +95 |
AS4C2G16D4-62BCN |
32Gb |
2Gb x 16 |
96-ball FBGA |
1600MHz |
0 to +95 |
AS4C4G8D4-62BCN |
32Gb |
4Gb x 8 |
78-ball FBGA |
1600MHz |
0 to +95 |
Samples and production quantities of the AS4C512M16D4B-62BCN, AS4C1G8D4B-62BCN, AS4C1G16D4A-62BCN, AS4C2G8D4A-62BCN, AS4C2G16D4-62BCN, and AS4C4G8D4-62BCN are available now, with lead times of four weeks.
